West Lake Tactical

2.5-10x40 Rifle Scope Mil-dot Illuminated Red Laser 20/11mm Rail Mounts

SCO-21040-RD-12B43, RLMT-SCOPE-10MM-12D63

Sporting Goods:Hunting:Scopes, Optics & Lasers:Other Hunting Scopes & Optics

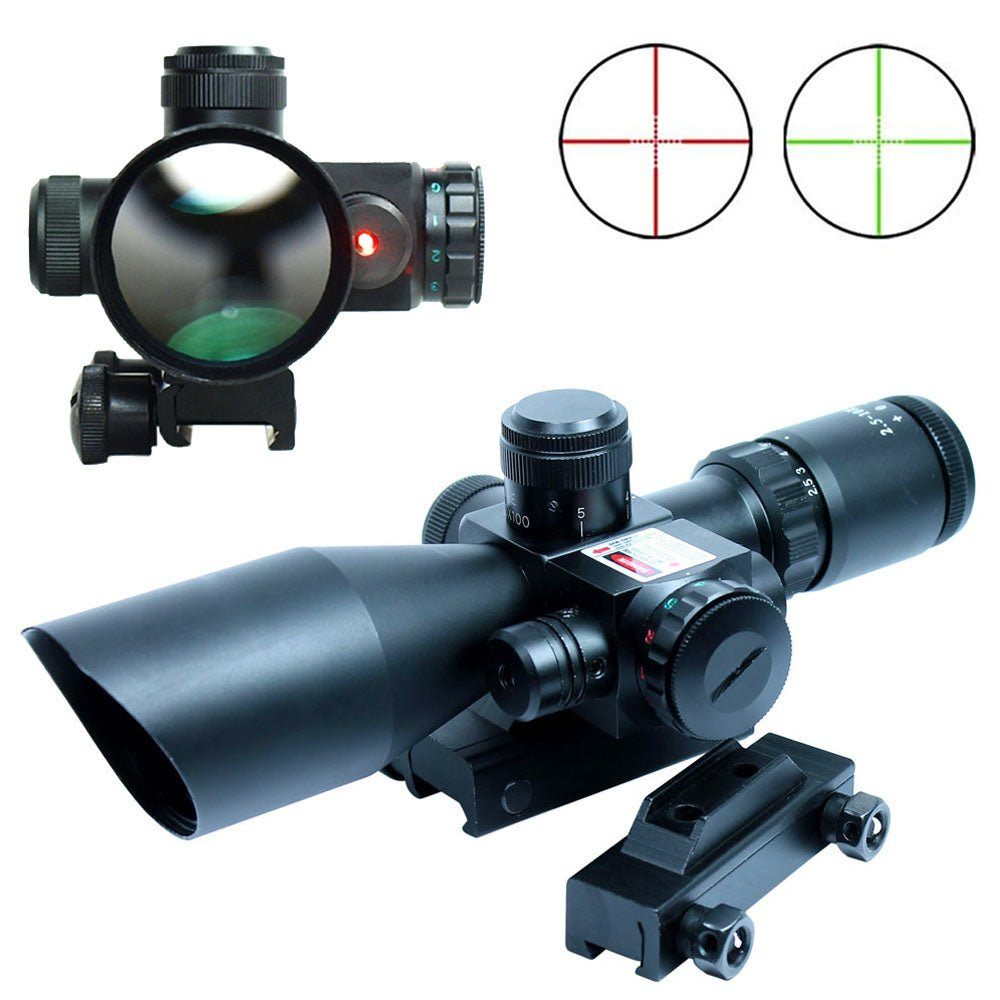

2.5-10X40 Rifle Scope with Integrated Red Laser Sight


This compact tactical rifle scope is well suited for close to mid-range shooting, with high optical clarity at 2.5-10X times magnification and a 40mm objective diameter. The reticle is illuminated in red or green and in multiple brightness intensities, for a suitable sight picture regardless of lighting or environment. The integrated red laser sight allows for quick acquisition of close quarter targets.



  • Durable all metal construction
  • High-grade optical glasses
  • Independently controlled laser sight
  • Interchangeable mounts for quick and secure attachment to any 20mm Picatinny / Weaver or 11mm Dovetail rails
  • Padded storage box


Specifications (Rifle scope)

  • Dimensions: 8.5"(length)x3"(width)x3"(height)
  • Weight: 20.5 oz
  • Magnification: 2.5x-10x
  • Obj. Diameter: 40mm
  • Brightness Control: Red : 5 levels / Green : 5 levels
  • Reticle : Mil-dot
  • Exit Pupil: 16mm @ 2.5x, 4mm @10x
  • Field of View: 100 yards of 32.5' @ 2.5x - 8.9' @10x
  • Eye Relief: 101.6mm @ 2.5x, 76.2mm @ 10x
  • Power: One (1) CR2032 (Reticel Illumination)

                        One (1) CR123 (Red Laser)

  • Laser Power: 2mw
  • Laser Frequency: 650nm
  • Laser Reaching Distance: 100 yard


Items Included

  • One (1) 2.5-10X40 illuminated rifle scope w/ red laser
  • One (1) 20mm rail mount (pre-installed)
  • One (1) 11mm Dovetail rail mount
  • Lens caps
  • One (1) Allen key
  • One (1) cleaning cloth
  • Two (2) CR2032 batteries (one spare)
  • Three (3) AG10 batteries
  • One (1) padded storage box
